Video Measuring Machine
Video Measuring Machine-Z axis Auto
Description

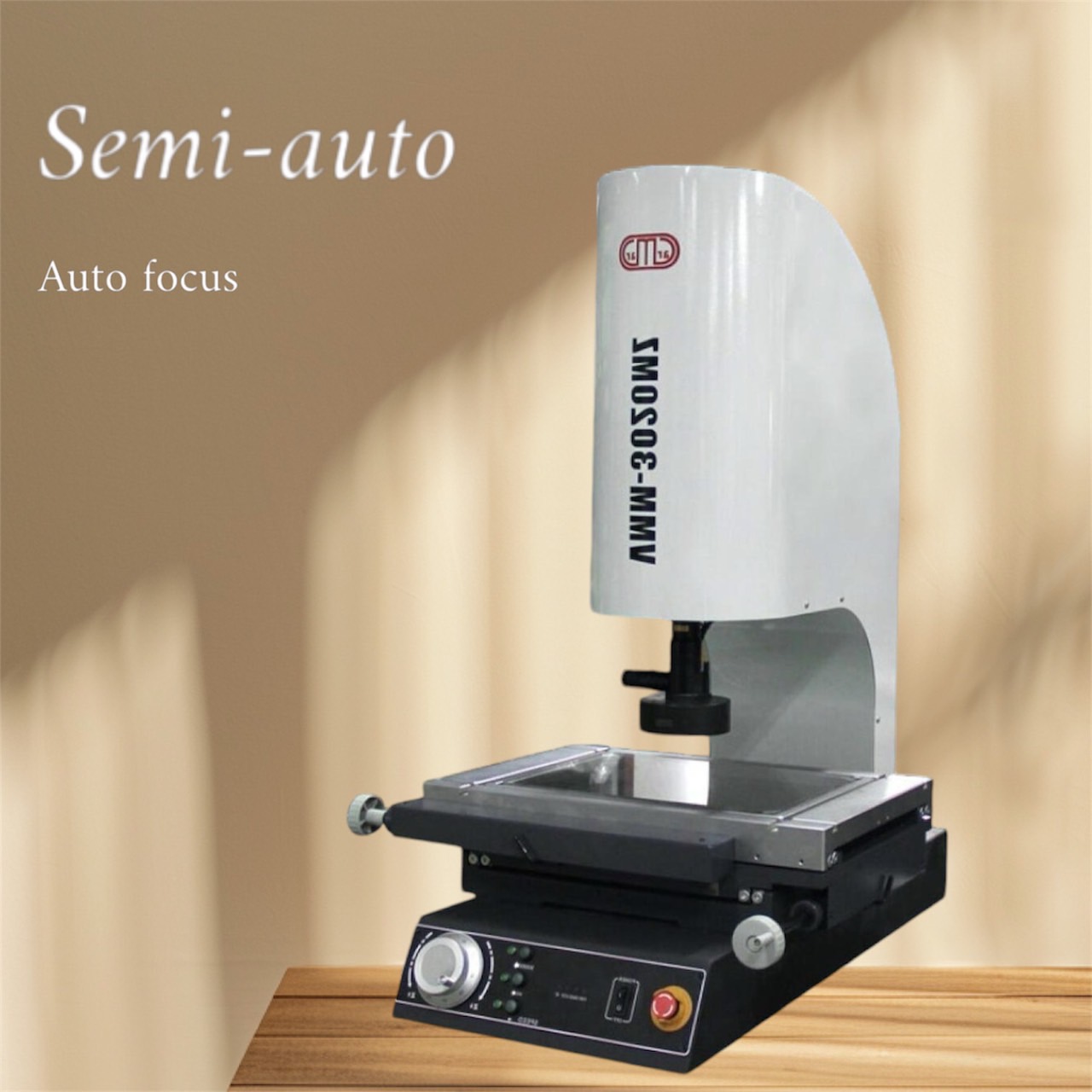

Revolutionize Your Measurements with Carmar's Semi-Auto Series
At Carmar, we take pride in our Semi-Auto Series, a pinnacle of engineering excellence within our product lines. Our commitment to delivering precise, cost-effective equipment paired with exceptional service defines our business philosophy.
Unmatched Precision in 2D Measurements
The VMM Series is expertly designed to meet all your two-dimensional measurement needs, equipped with advanced software to enhance your workflow.
Key Features of the VMM Series:
- High Accuracy: Built with a fixed working table and granite pedestal for unparalleled stability.
- Seamless Communication: RS-232 interface allows smooth interaction between the measuring software and your computer.
- Exceptional Imaging: High-resolution CCD camera and zoom lens deliver sharp, clear images.
- Flexible Output: Effortlessly manage and export graphs in BMP or DXF (AutoCAD) format by connecting to a PC.
- One-Click Edge Detection: Simplify your measurement processes with intuitive edge detection capabilities.
Why Choose Carmar's Semi-Auto Series?
Our semi-auto measurement solutions not only enhance accuracy but also boost productivity, making them ideal for various industries. Experience the perfect blend of technology and user-friendly design that Carmar offers.
Get Started Today!
For more information, you can click here to check our additional resources: Blog
Specifications
Model | VMM-3020MZ | VMM-4030MZ |
---|---|---|
Stage Size (mm) | 500 x 330 | 606 x 466 |
Glass Size (mm) | 350 x 250 | 450 x 350 |
X/Y Travel (mm) | 300 x 200 | 400 x 300 |
Weight (kg) | 1268 | 266 |
Dimensions (mm) | 760 x 600 x 900 | 970 x 670 x 940 |
Z axis travel (mm) | 150 mm (for focusing) | |
Accuracy | ≤ ( 3 + L/200 )μm ; L: measuring length (mm) | |
Display Resolution | Resolution : 0.0005 mm | |
Measuring Software | CARMAR 2.5D | |
Video System | CCD Camera:Colour 1/3“ CCD Camera Zoom Lens Magnification of field lens 0.7X - 4.5X Total Magnifications 33X - 195X Object View: 8.1mm - 1.3mm (Value above is calculated by certain monitor, the value will change based on different size of monitor)
|
|
Lightening System | Adjustable LED Surface and Transmission illumination | |
Power Supply | AC220V/110V 50/60 Hz |
