High-precision granite

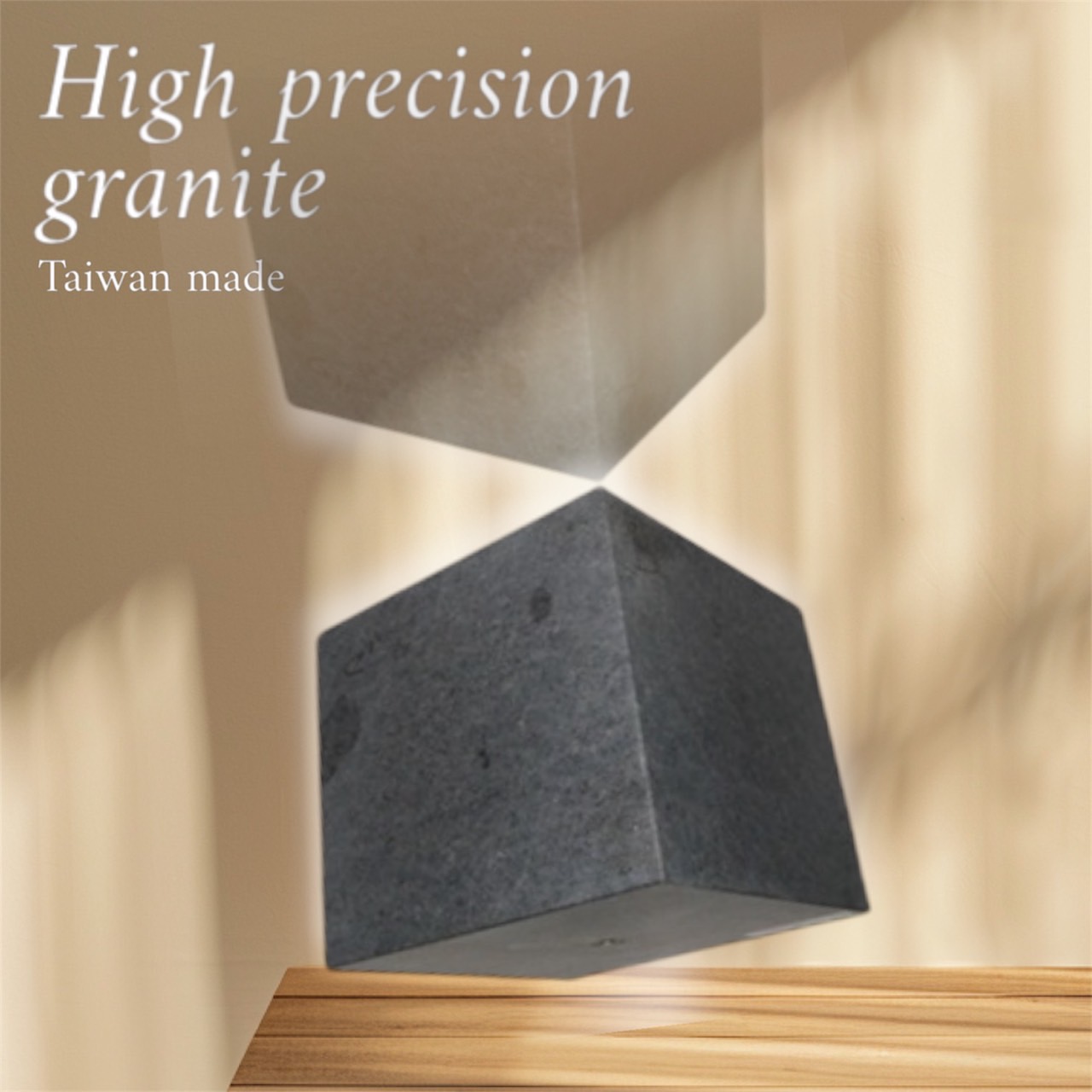

Granite Cube Ruler
Description
Features
(1)Made of high-quality granite slab, precision reference to German national standards: Precision tolerance on all six sides conforms to DIN875 standard, providing precision inspection standards for the industrial sector.Flatness tolerance conforms to DIN876 granite slab standard, providing precision inspection standards for the industrial sector.
(2)Essential fixture for precision inspection and laboratory use. Used for checking perpendicularity, parallelism, and can serve as a 90-degree absolute measurement reference.
(1)Made of high-quality granite slab, precision reference to German national standards: Precision tolerance on all six sides conforms to DIN875 standard, providing precision inspection standards for the industrial sector.Flatness tolerance conforms to DIN876 granite slab standard, providing precision inspection standards for the industrial sector.
(2)Essential fixture for precision inspection and laboratory use. Used for checking perpendicularity, parallelism, and can serve as a 90-degree absolute measurement reference.
Specifications
000 grade | 00 grade | ||||
---|---|---|---|---|---|
(L*W*T) mm | (KG) | Accuracy (um) |
Model No. | Accuracy (um) |
Model No. |
100*100*100 | 1.5 | TSE 150*150-00 | 3 | TSE 150*150-0 | |
150*150*150 | 1.5 | TSE 200*200-00 | 3 | TSE 200*200-0 | |
200*200*200 | 2 | TSE 250*250-00 | 4 | TSE 250*250-0 | |
250*250*250 | 2 | TSE 300*300-00 | 4 | TSE 300*300-0 | |
300*300*300 | 2 | TSE 300*300-00 | 4 | TSE 300*300-0 | |
400*400*400 | 3 | TSE 400*400-00 | 6 | TSE 400*400-0 | |
500*500*500 | 4 | TSE 500*500-00 | 8 | TSE 500*500-0 | |
600*600*600 | 5 | TSE 600*600-00 | 10 | TSE 600*600-0 | |
Using high-quality granite material with precision referenced to German national standards: Verticality tolerance according to DIN875 standard. - Flatness tolerance according to DIN876 standard. (We reserve the right to alter the Specifications) |
