Video Measuring Machine
One click - Automatic Large Image
- Features

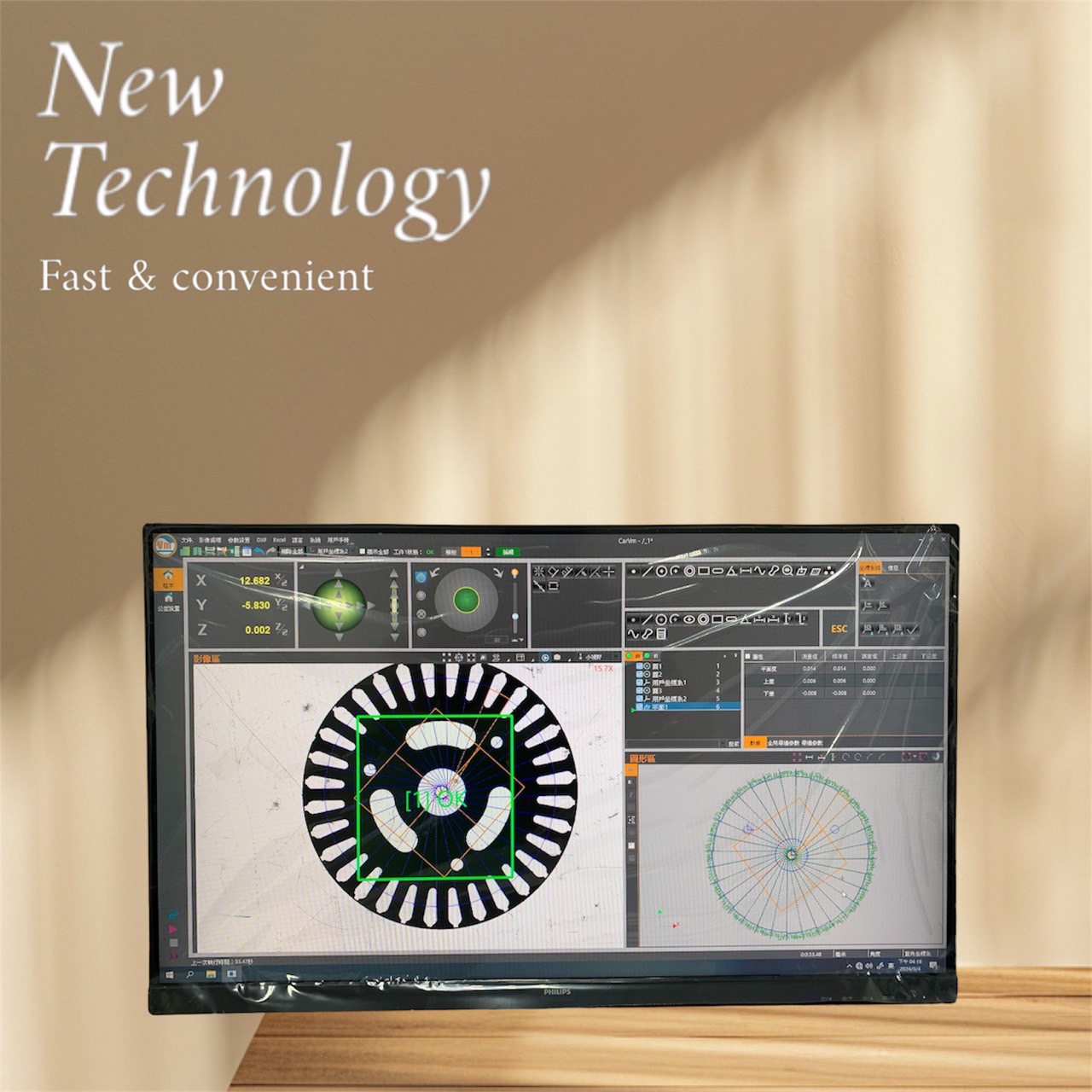

- Custom Stitching View: Customize the stitched image view.
- Field of View Setting: Set the field of view, measure the entire area for a single file creation.
- Multi-Workpiece Measurement: Measure multiple workpieces at the same time.
- Quick Stitching: Stitch a 200 mm x 200 mm image within 40 seconds.
Description

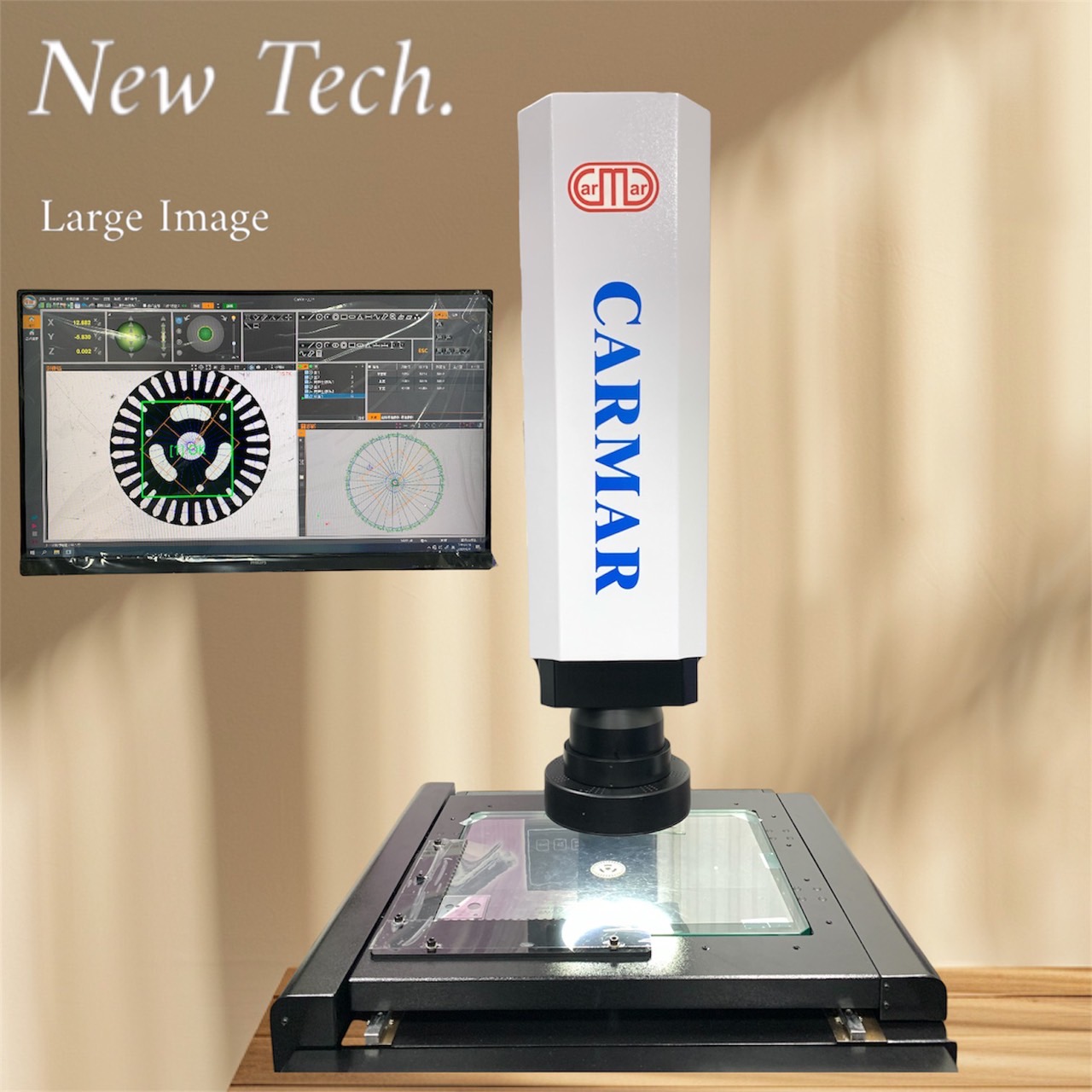

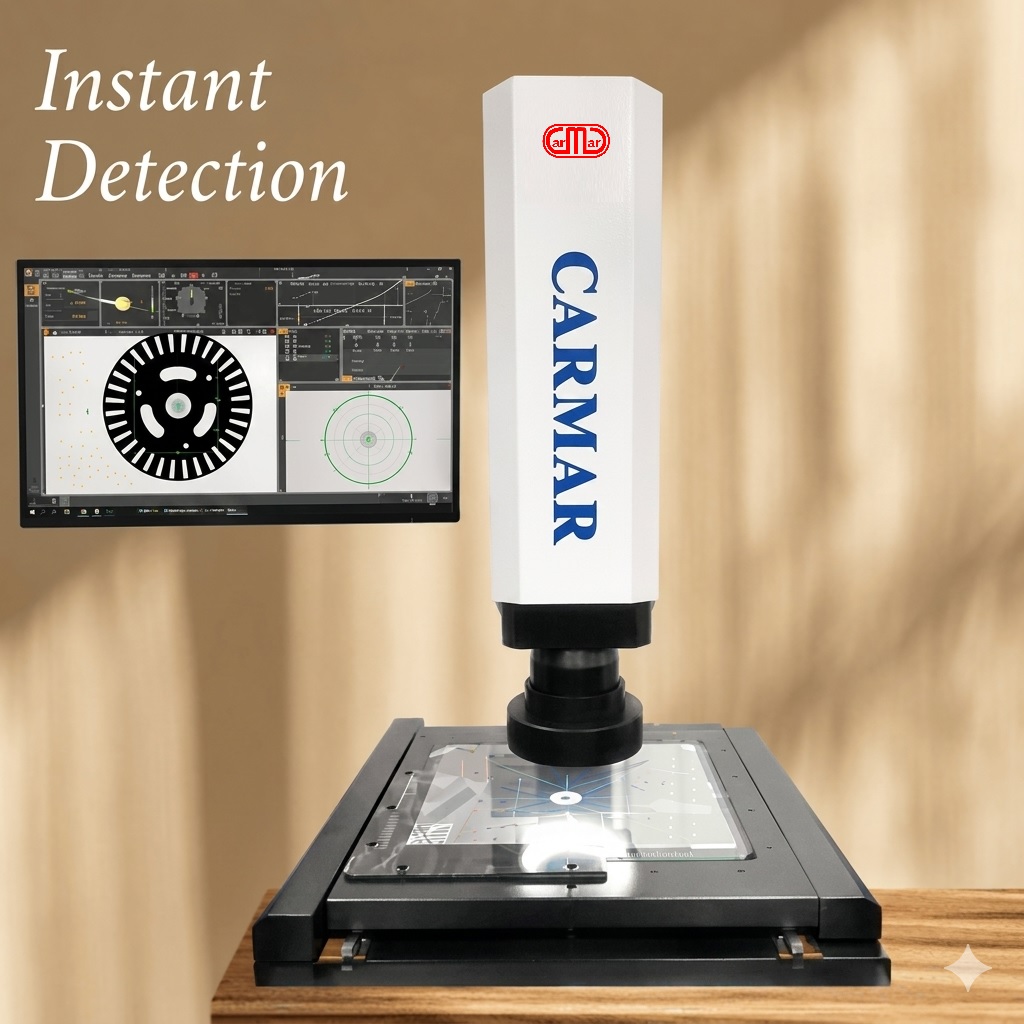

One click - Automatic Large Image
One click - Automatic Large Image instruments are vital for ensuring product quality in modern manufacturing. Their strategic use enhances efficiency and reduces defects.
1. Incoming Inspection
Use large-field imaging instruments to inspect incoming materials. Early detection of defects allows for timely returns, minimizing the risk of using inferior products.
2. Experimental Batch Inspection
During prototyping, utilize large-field imaging to ensure processes meet specifications before mass production, preventing waste and ensuring quality.
Conclusion
In summary, image measuring and large-field imaging instruments enhance inspection efficiency and reduce defects, making them essential for quality assurance in manufacturing.
Discover more about our advanced video measuring solutions in our detailed resources: VIDEOS
.png)
Specifications

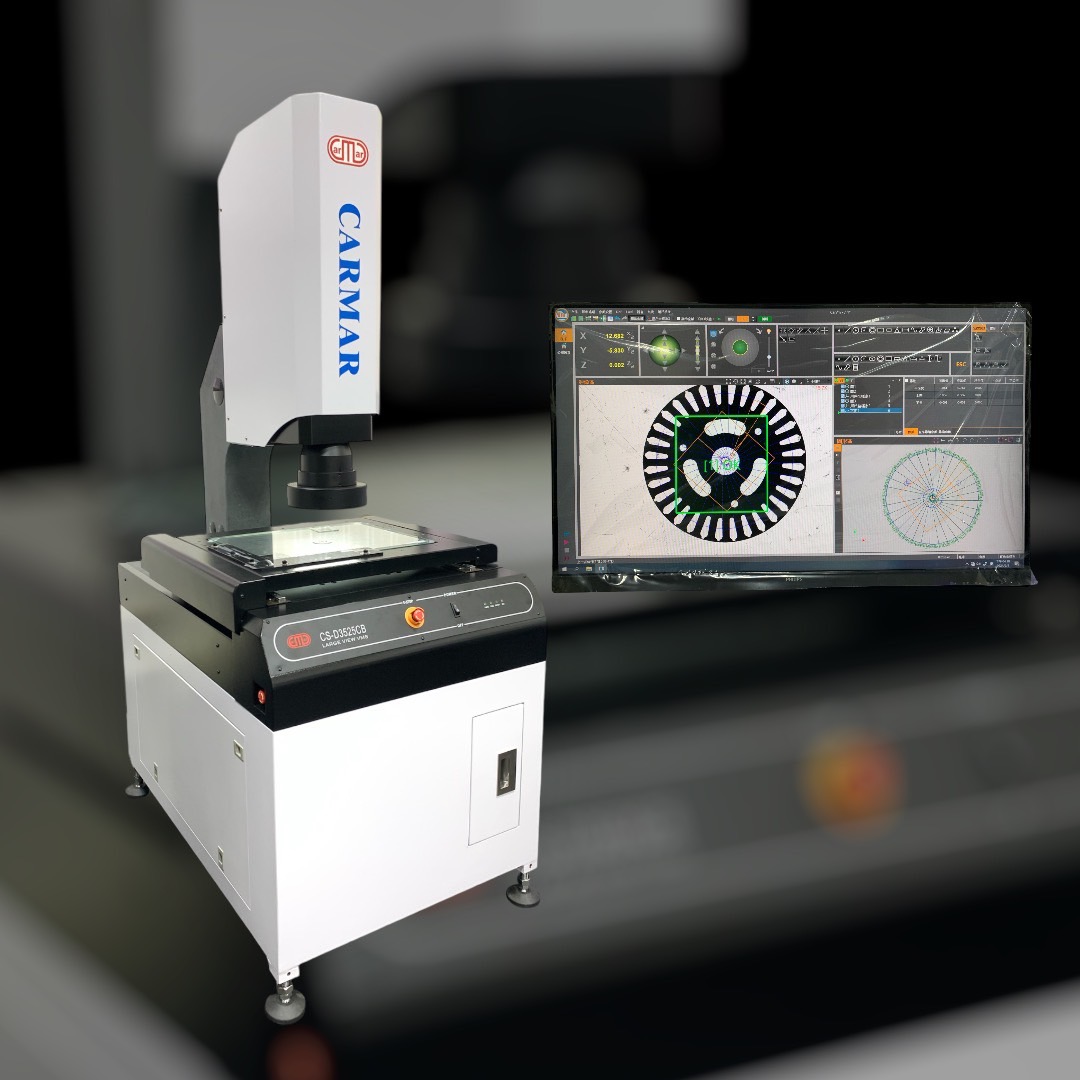

| Model | WCS-D3525CB | WCS-D4535CB | |
|---|---|---|---|
| Working distance (mm) | 145 ± 2 mm | ||
| Working load (kg) | 20 | ||
| Z Axis Lift Stroke(mm) | 150 | ||
| Focus (z) | Auto Focus | ||
| Drive control system | independent motor control | ||
|
S Y
S T E M |
Centrifugal lens magnification | 0.16 X | |
| 0.64 X | |||
| Large field of view (mm) | 80*50 | ||
| Measuring range (mm) |
400*300 Large view | 500*400 Large view | |
| Small field of view(mm) | 20*14 | ||
| Measuring range (mm) |
350*250 Small view | 450*350 Small view | |
| Repeatability (mm) | 5 | ||
| Motion Accuracy(mm) | 3+L/200 | ||
| Depth of Field (mm) | large view: 6mm@25Ip/mm | ||
| small view: 0.6mm@64Ip/mm | |||
| Image Sensor | 20 million USB3.0 industrial camera | ||
| Software | BroCarVm Data Processing Professional Software | ||
| Lighting System | Surface light and bottom light respectively | ||
| Dimensions(mm)(L x W x H) | 1000*690*1755 | 1130*810*1800 | |
| Weight (kg) | About 500 kg | About 570 kg | |
| Rights reserved to change specifications without prior notice | |||
