Profile Projector

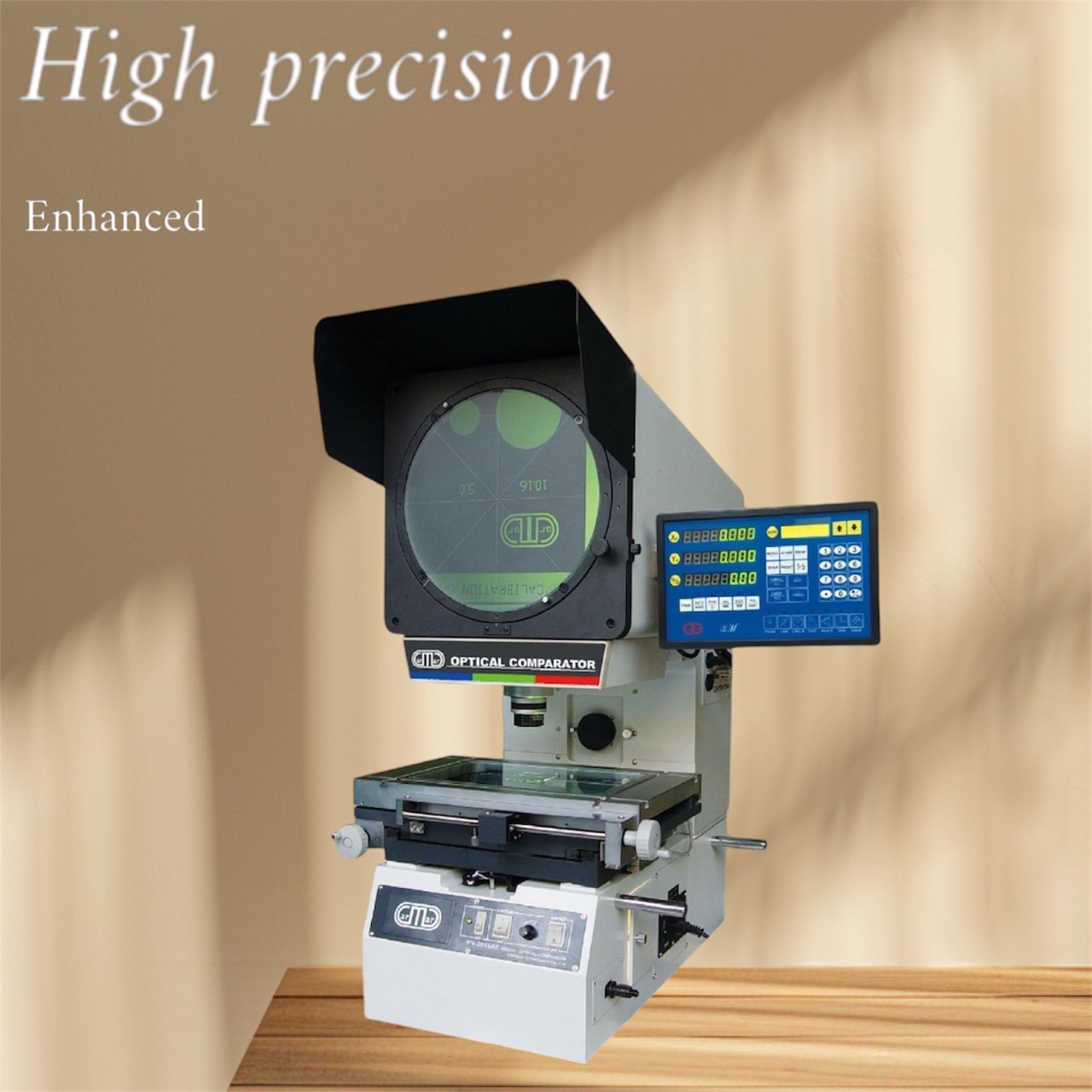

Digital Profile Projector-Enhanced
- Features
- 1.Excellent optical measuring system to project precisely magnified image in Profile Projector.
- 2.Magnification accuracy : 0.08% contour, 0.12% surface.
- 3.Equipped with 3M DRO(DC3000) data processing system and foot-switch for measuring.
- 4.Erect image measuring for different requirements.
Description

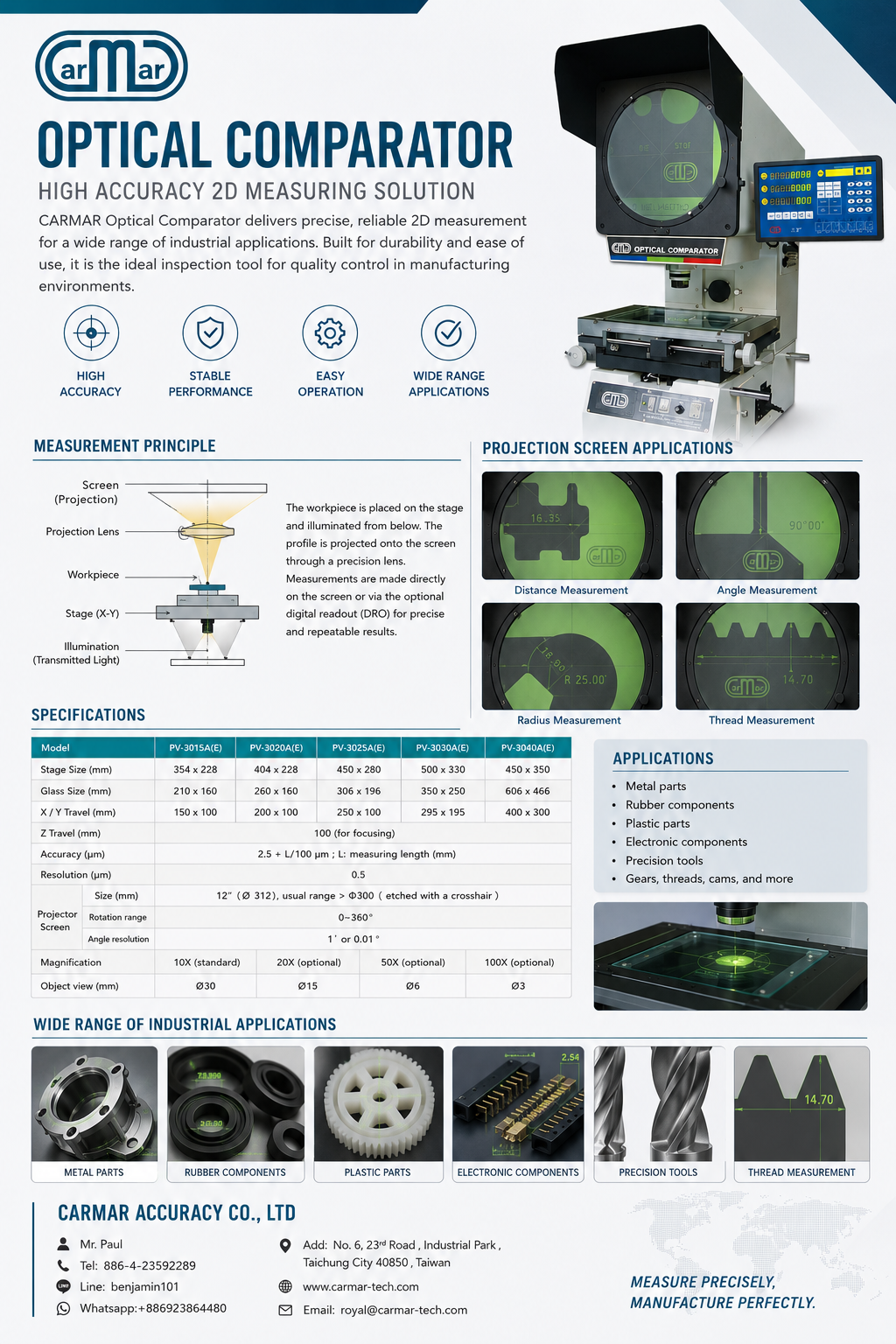

High-Precision Profile Projectors - CARMAR PV Series
Discover our reliable and affordable profile projectors, designed for high-precision and efficient optical profile measurement. Ideal for measuring various shapes and complex profiles with excellent accuracy.
Key Features of Our Profile Projectors
- Excellent Optical Measuring System: Precisely projects magnified images for accurate measurements.
- High Magnification Accuracy: Contour accuracy at 0.08%, surface accuracy at 0.12%.
- Advanced Data Processing: Equipped with 3M DRO(DC3000) system and foot-switch for efficient measuring.
- Erect Image Measuring: Suitable for various measurement requirements with erect image viewing.
Why Choose CARMAR PV Series Profile Projectors?
The CARMAR PV series profile projectors are reliable and cost-effective measuring systems that deliver high precision and efficiency. They are perfect solutions for critical high-quality optical profile measurements, suitable for a wide range of shapes and complex profiles including press components, gears, cams, treads, tools, dies, turned components, and automats.
Profile projectors are the most effective devices for measuring two-dimensional parameters such as linear dimensions and angles. While they may not offer the clarity of video measuring machines, their convenience and ease of use make them indispensable in various industrial applications.
Benefits of Using Profile Projectors
- Cost-Effective: More affordable compared to video measuring machines while maintaining high accuracy.
- User-Friendly: Simple operation with minimal setup time required.
- Versatile Applications: Suitable for various industries and measurement needs.
- Durable and Reliable: Built to withstand rigorous industrial environments and provide consistent performance.
For more information, you can click here to check our additional resources: Blog.
Specifications
Model | PV-3015A(E) | PV-3020A(E) | PV-3025A(E) | PV-3030A(E) | PV-3040A(E) | |
---|---|---|---|---|---|---|
PV-A (Reverse image) PV-AE (Erect image) | ||||||
Stage Size (mm) | 354 x 228 | 404 x 228 | 450 x 280 | 500 × 330 | 450×350 | |
Glass Size (mm) | 210 x 160 | 260 x 160 | 306 x 196 | 350×250 | 606×466 | |
X/Y Travel (mm) | 150 x 100 | 200 x 100 | 250 x 100 | 295 x 195 | 400 x 300 | |
Z Travel (mm) | 100 (for focusing) | |||||
Accuracy (μm) | E1XY=(2.5+L/100) μm ; L: measuring length (mm) | |||||
Resolution (μm) | 0.5 | |||||
Measuring Software | CARMAR 2D (Optional) | |||||
Projector Screen |
Size (mm) | 12" (⌀ 312), usual range > Ф300(etched with a crosshair) | ||||
Rotation range | 0~360° | |||||
Angel resolution | 1’ or 0.01° | |||||
Objective lens |
Magnification | 10X(standard) | 20X(optional) | 50X(optional) | 100X(optional) | Magnification |
Object view (mm) | ⌀30 | ⌀15 | ⌀6 | ⌀3 | Object view (mm) |
|
Working distance (mm) | 77.7 | 44.3 | 38.4 | 25.3 | Working distance (mm) |
|
Max. work-piece height (mm) | 90 | 90 | 90 | 90 | Max. work-piece height (mm) |
|
Data process system |
3M multi-function data processing system : Coordinate skew, mm/inch conversion, ABS/INC conversion, Zero setting, % calculation, 0* 90* 270" 360 conversion, linear compensation RS-232 data output |
|||||
Illumination |
Transmission and reflection light source : 24V/150W-halogen lamp |
|||||
Power |
110V/220V(AC)ㆍ50/60Hzㆍ400W total power |
|||||
Light souce cooling |
Forced air cooling |
|||||
Dimensions (mm) | 780x780x1100 | 780x780x1100 | 810x780x1100 | 900x780x1020 | 1040x780x1120 | |
Weight (kgs) |
160 |
160 | 180 | 250 | 250 | |
Optional | The accessories include 2D software, a rotary table, a swivel center support, and an edge detector. For additional accessories, please contact the sales manager. |
