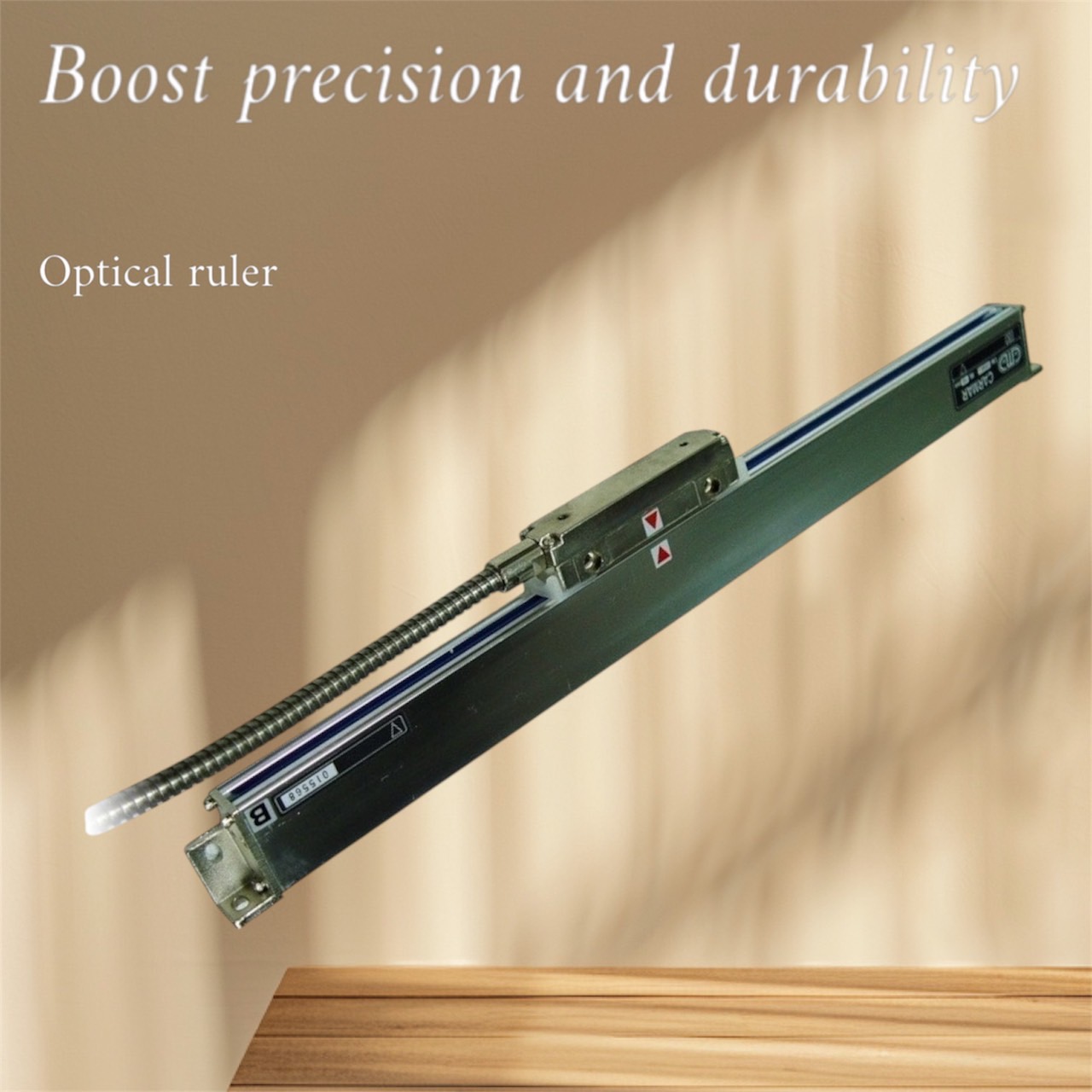

Discover the Pinnacle of Precision with Our LS/LE Series Optical Rulers
Elevate your machinery's performance with our cutting-edge LS/LE Series Optical Rulers. Engineered to perfection, these rulers harness a sophisticated light source and photoelectric receiving module, ensuring unparalleled output signal quality. This translates directly into superior positioning accuracy and movement speed, setting a new standard in the industry.
Why Choose Our Optical Rulers?
1. Superior Quality and Accuracy

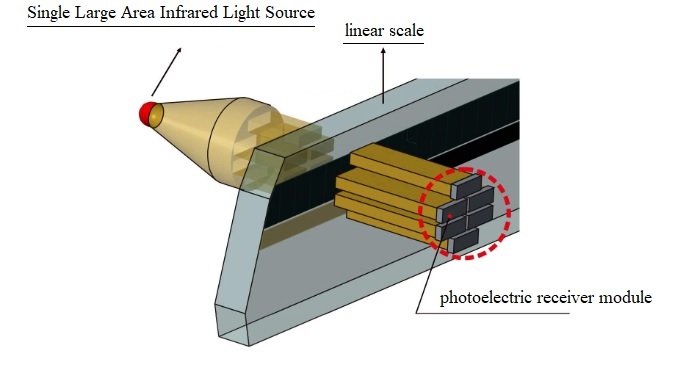

- Single Light Source Innovation: Our optical rulers feature a single LED light source and large-area receiving modules, delivering exceptional parallelism and uniform light intensity compared to traditional four-pair tube methods.
- High-Resolution Performance: With a resolution as fine as 0.5 micrometers, our rulers provide pinpoint accuracy for your applications.
2. Unmatched Reliability and Durability
- Robust Design: The independent design of our LED light source overcomes the aging issues found in conventional systems, ensuring long-term stability and performance.
- Advanced Signal Processing: Our sinusoidal signal segmentation chip, featuring pure hardware logic, offers rapid conversion speeds with an impressive output frequency of up to 2.5 MHz.
3. Exceptional Anti-Jamming and Environmental Resistance
- High Anti-Jamming Capability: The circuit board’s differential processing and peripheral board design boost interference resistance to an outstanding 2200V.
- Durable Construction: Featuring an integrated gold ball teaching outer cover and patented anti-dry lifting strength, our rulers are built to withstand tough conditions. The special legacy remote carving explosion wheel (patent number: ZL200820044310.3) ensures robust performance in challenging environments.
4. Reliable Maintenance and Longevity
- Easy Maintenance: Key components, including the flag head, body, drip seat, circuit board, and signal line, are easily removable for quick repairs, minimizing downtime and maintenance costs.
- Proven Durability: Each optical ruler undergoes rigorous anti-jamming and aging tests, with precision moisture testing included for added reliability.
5. Comprehensive Support
- Exceptional Service: Our dedicated after-sales team is ready to address any concerns and ensure your equipment operates flawlessly.
Experience Precision Like Never Before
Choose the LS/LE Series Optical Rulers for superior accuracy, reliability, and durability in your operations. With our cutting-edge technology and unwavering support, you can trust that you are investing in the best. Contact us today to learn more and revolutionize your machinery with our state-of-the-art optical rulers.
Table of Comparison: The Impact of Receiving Processing Methods on Optical Measurement Performance
Receiving Processing Method | Carmar Single Row Optical Receiving Module | Four Tube Separate Receiving Module |
---|---|---|
Receiving Area | Good (Uniformity is good) | Small |
Signal Stability | Good (Uniformity is good) | Poor |
Response Speed | Fast | Average |
Signal Interference Resistance | Strong (Uniform decay, minor impact after decay) | Average |
Long-Term Signal Decay in Operation | Uniform decay (minor impact after decay) | Large variation in decay |
External Maintenance Rate | Low | High |
Table of Comparison: The Impact of Light Sources on Optical Measurement Performance
Light Source | Carmar Single Row Light Source | Four Tube LED Light Source |
---|---|---|
Uniformity of Light Field | Good (3°) | Poor (15°) |
Uniformity of Light Intensity | Good | Poor (Inconsistency) |
Achievable Resolution | High (Resolution of 0.5 µm at 20 µm spacing) | Low (Resolution of 1 µm at 20 µm spacing, unstable for long-term operation) |
Impact of Long-Term Operation on Light Intensity Stability and Resolution | Small (Only small degradation in light intensity received, minimal impact on measurement performance) | Large (Separate decay, inconsistent light intensity weakening, significant impact on performance) |
Post-maintenance Cost | Low | High (Noticeable after one year) |
For more information, you can click here to check our additional resources: Blog.

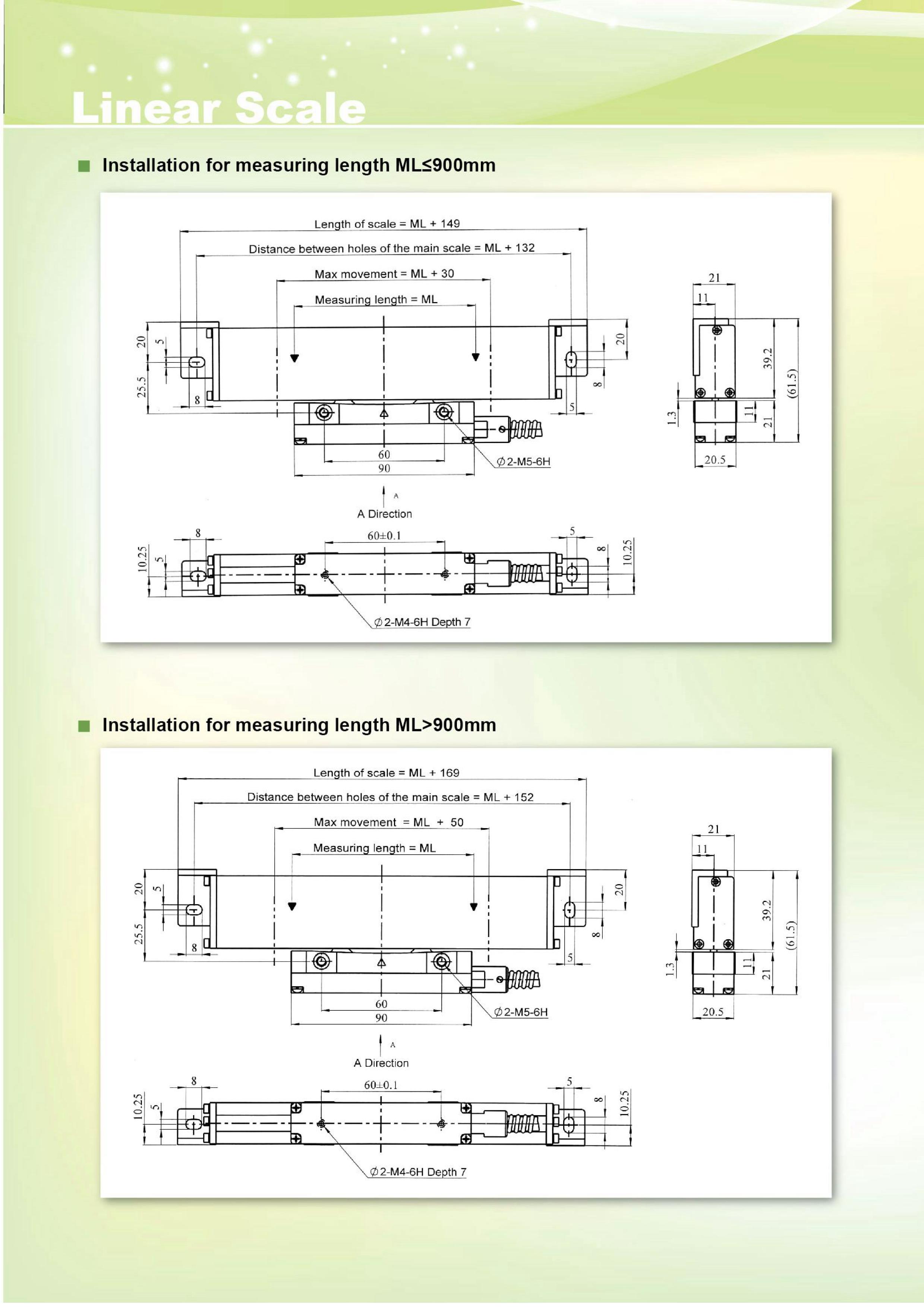

Specifications
Grating pitch | 20 µm |
---|---|
Resolution | 0.005 mm,0.001 mm ,0.0005 mm (option) |
Measuring length (ML) | 50 mm - 1,000mm |
Output signal | TTL square wave (std.) ; RS422 (option) |
Accuracy | ± ( 5 + L/200 ) µm ; L: measuring length (mm) |
Max. Response Speed | 60 m/min (1 µm resolution) |
Signal Cable | 3.5 m for ML <1,200mm, 5 m for ML ≧1,200mm |
Working temperature | 0℃- +40℃ |
Storage temperature | -20℃- +50℃ |
Linear scale | |||||||
---|---|---|---|---|---|---|---|
Res.\ ML | 50mm | 100mm | 150mm | 200mm | 250mm | 300mm | 350mm |
0.005mm | LS50-0050 | LS50-0100 | LS50-0150 | LS50-0200 | LS50-0250 | LS50-0300 | LS50-0350 |
0.001mm | LS10-0050 | LS10-0100 | LS10-0150 | LS10-0200 | LS10-0250 | LS10-0300 | LS10-0350 |
Res.\ ML | 400mm | 450mm | 500mm | 550mm | 600mm | 650mm | 700mm |
0.005mm | LS50-0400 | LS50-0450 | LS50-0500 | LS50-0600 | LS50-0700 | LS50-0800 | LS50-0900 |
0.001mm | LS10-0400 | LS10-0450 | LS10-0500 | LS10-0600 | LS10-0700 | LS10-0800 | LS10-0900 |
Res.\ ML | 1000mm | ||||||
0.005mm | LS50-1000 | ||||||
0.001mm | LS10-1000 |
