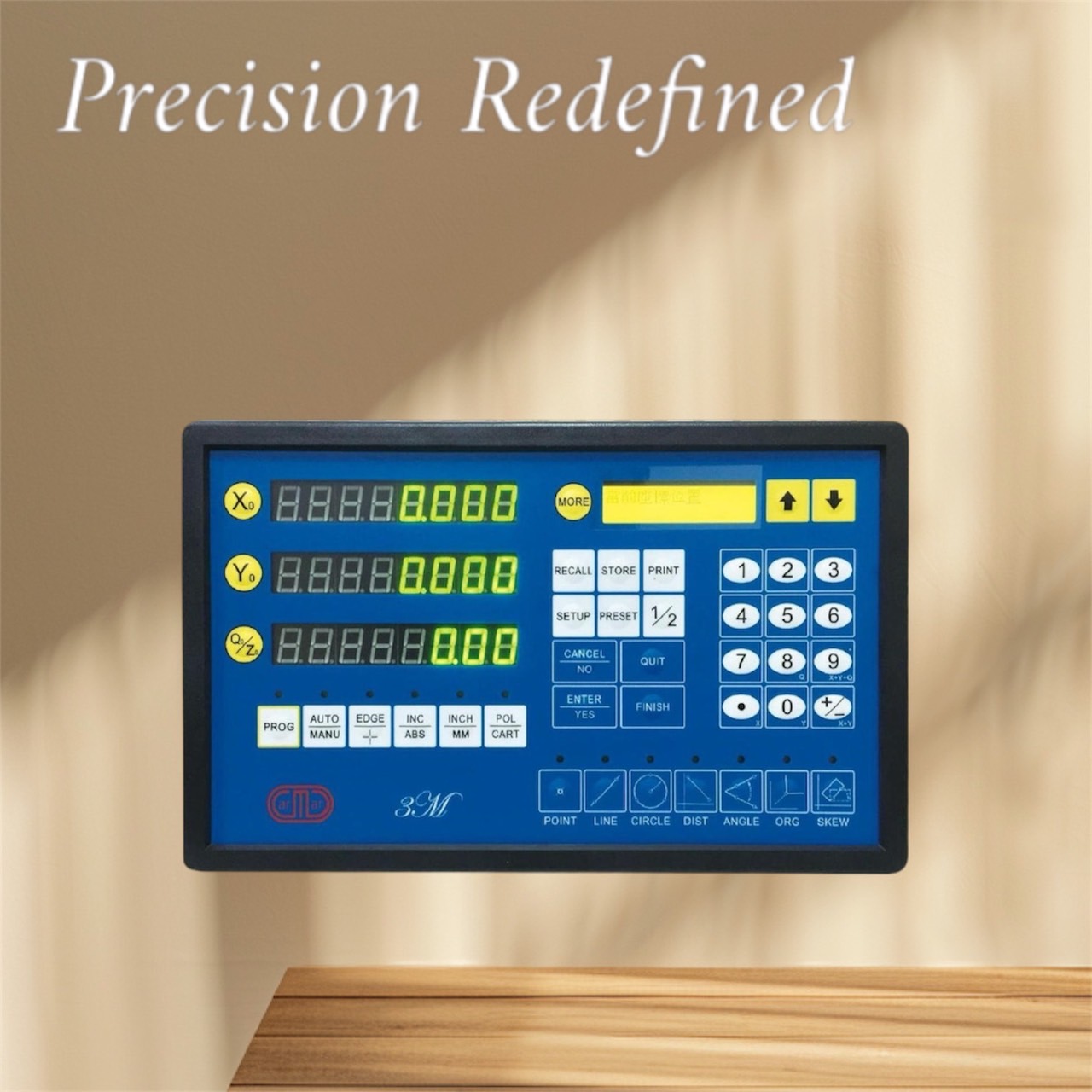

Explore the CARMAR-3M (DC3000) Digital Readout System

The CARMAR-3M (DC3000) is expertly designed for digital linear scales in measuring systems and video measuring applications. Its high-efficiency two-dimensional data processing capabilities enhance accuracy and usability when connected to optical comparators, measuring microscopes, and video measuring systems.

Key Features of the 3M Digital Readout Multi-Function Data Processing System

• Advanced Software Support: Integrates with Carmar software to enhance the user experience. Watch the demo here.
• Edge Detection: Utilizes the Carmar edge detector to minimize human error, improving overall measurement accuracy. See how it works here.
• Graphic Construction: Create dimensions from existing elements like points, lines, and circles—for example, determining the distance between two circles.
• Comprehensive Measurement: Measure, preset, and construct graphic elements such as points, lines, circles, angles, distances, rectangles, and threads.
• Convenient Axis Alignment: Easily skew (align) axes and shift coordinates.
• User Program Recording: Record and run custom user programs for tailored applications.
• Quick Data Retrieval: Obtain data rapidly using a foot switch for convenience.
• Print Functions: Print user programs, graphic elements, and displayed three-axis coordinates for documentation.
• RS232 Data Transfer: Transfer current linear scale positions to a PC via RS232 interface.
• Error Correction: Includes linear error correction and segmental linear error correction for enhanced precision.
• Versatile Connectivity: Connect with linear scales or rotary encoders, including Z-axis capabilities.
• Storage Capacity: Store up to 10 temporary graphic elements and 100 permanent graphic elements.
• Multilingual Support: Display interface available in English and traditional Chinese.

Upgrade your measurement systems with the CARMAR-3M (DC3000) digital readout, designed to provide unparalleled precision and flexibility in machining and measuring applications.
