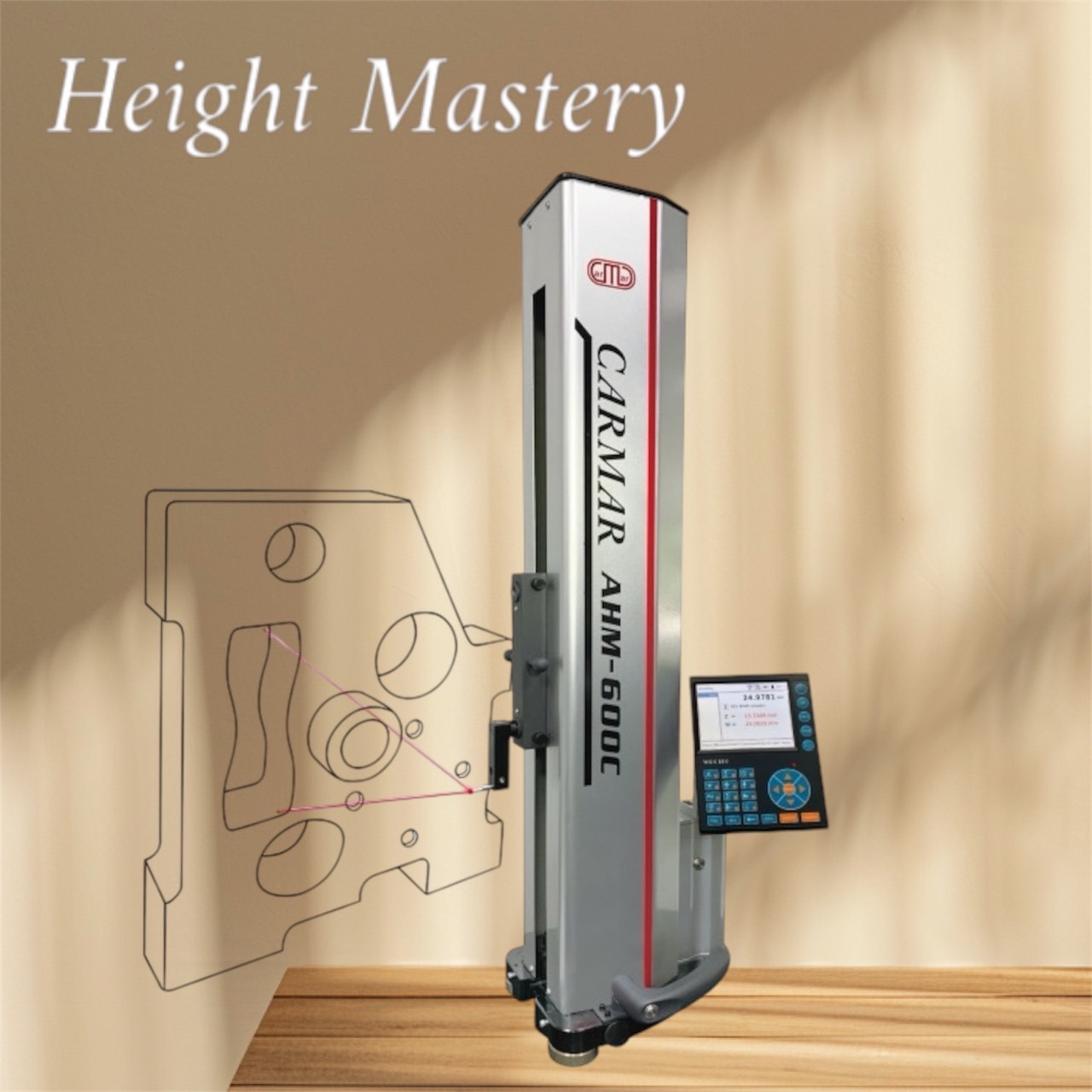

Height measuring machine
Height measuring machine
- Features
- 1. Granite air flotation mechanical structure- high accuracy and small deformation by temperature difference.
- 2. Auto measuring- high efficiency,and high stability and reliability.
- 3. Verticality measurement available upon request
- 4. Air flotation in pedestal,which makes it convenient to measure.
Description
Height Measuring Gauge is a standing digital con-coordinate measuring machine based on precision machinery, modern sensor technique and electronic technology. It is widely used in precision machinery, hardware, plastic, etc.
It can be used to measure the distance between two planes, depth of hole, groove width, and diameter, center distance, maximum and minimum value of hole and groove. In addition, when configured with electronic probe, it is possible to measure verticality.
Specifications
| Model | AHM-600C | AHM-450C |
|---|---|---|
| Effective measuring range (mm) | 600 | 450 |
| Total height (mm) | 1050 | 900 |
| Max. measuring height (mm) | 920 (change direction of probe) | 770 (change direction of probe) |
| Resolution (μm) | 0.5 | |
| Accuracy (μm) | 2+L/500 | |
| Verticality of front (μm) (after e-probe is amended) | 6 | 8 |
| Repeatability | plane: 1.0μm. curve: 2.0μm | |
| Speed recommended(mm/s) | 15 | |
| Max. electrical speed(mm/s) | 25 | |
| Max. Manual speed (mm/s) | 400 | |
| Power supply | 12V rechargeable battery pack | |
| Air supply | air pressure≧0.4Mpa, flow≧30/min | |
| Temperature | 10-40°C | |
| Weight(kgs) | 40 | 36 |
