Video Measuring Machine

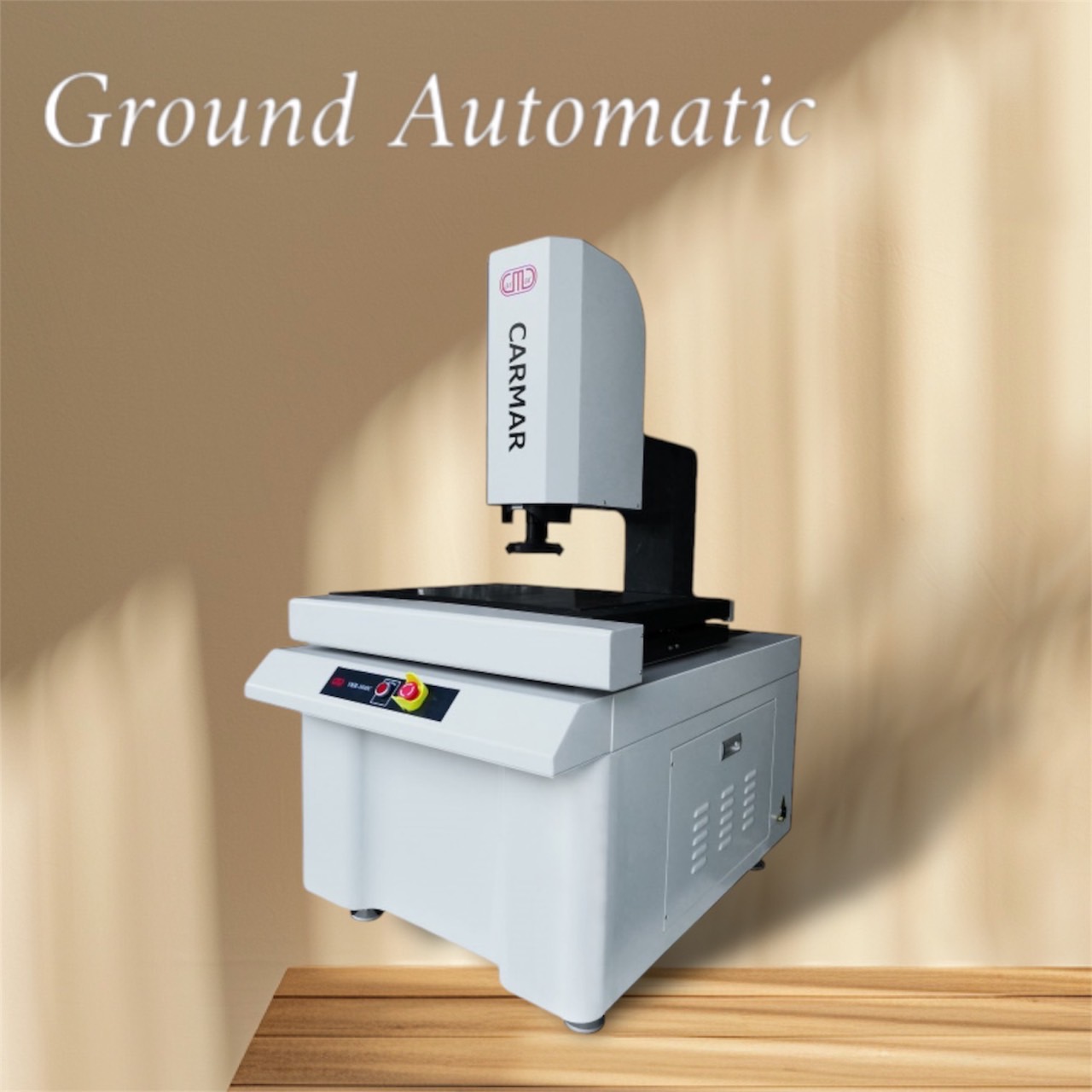

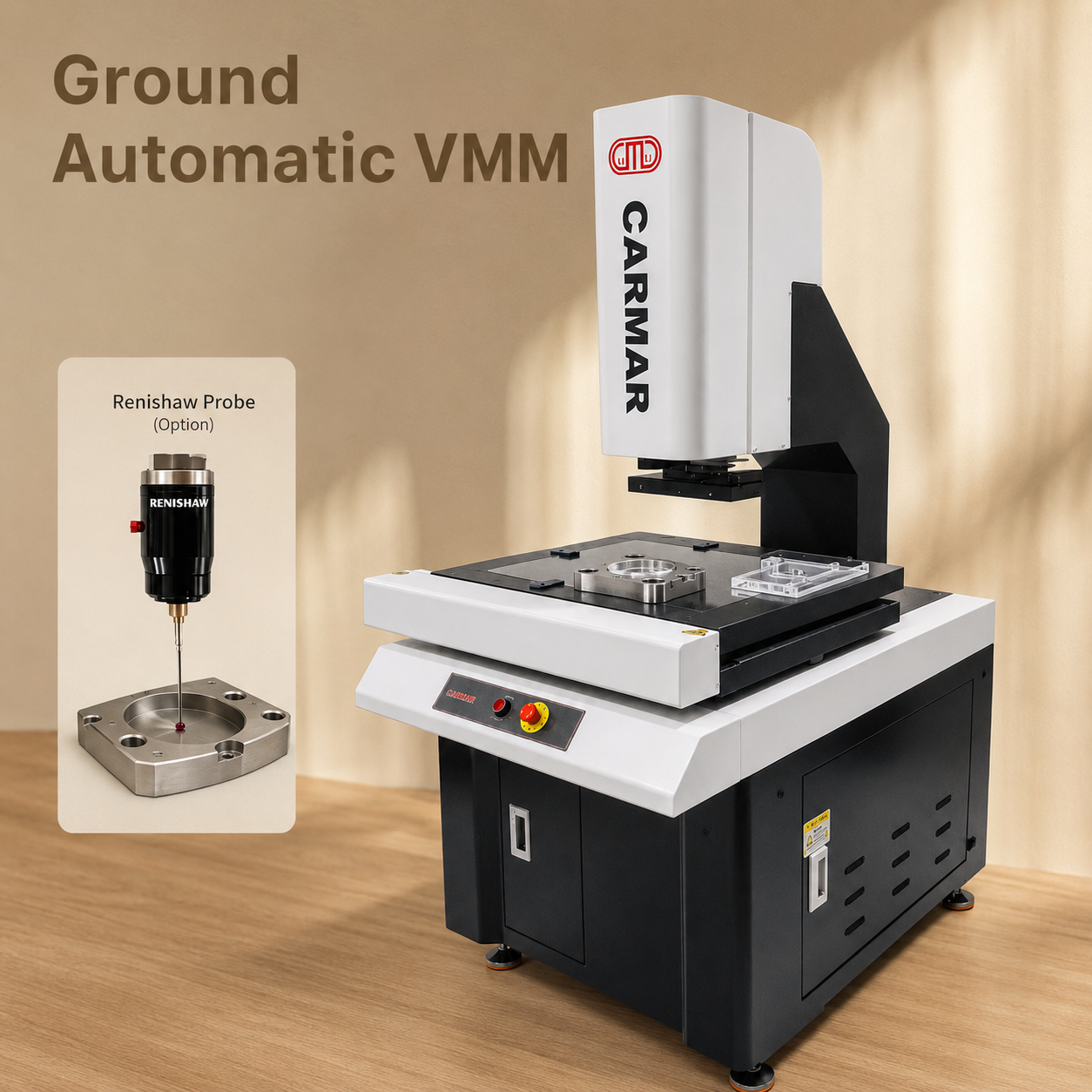

Video Measuring Machine-Automatic

Features
Precise & Intuitive Control: Auto-focus and joystick ensure accurate, easy operation.
Stable & Accurate Measurements: Fixed table with granite base supports precise positioning and high-speed tasks.
High-Resolution Imaging & Illumination: Color camera with zoom lens and cold-light source for clear, accurate visuals.
Seamless Integration & Data Transfer: USB interface connects smoothly with professional software.
Advanced CNC Software: Windows-based software offers in-depth analysis and reporting.

Description


Why Choose the Carmar CNC Video Measuring Machine?

The Carmar CNC Video Measuring Machine is a top-tier solution designed for highly accurate 2D measurements, featuring an advanced high-resolution CCD camera. Here's why it excels in performance and usability:

  • Automated Efficiency: Save time with automatic measuring, reducing the need for extensive operator training.
  • High Volume Capability: Efficiently process large quantities, minimizing the time spent on each task.
  • Error Reduction: Eliminate human errors, allowing your QC team to focus on critical tasks.
  • Enhanced Productivity: Achieve daily time and energy savings that boost overall efficiency.

Versatile Applications

The Carmar CNC Video Measuring Machine is ideal for both 2D and some 3D measurements. It finds applications across a wide range of industries:

  • Electronics
  • Precision molds
  • Tools and springs
  • Screws, plastics, and rubber
  • Oil seals and camera parts
  • Bicycle parts, motors, and conductive rubber
  • PCB processing

It is an essential tool for metric rooms, laboratories, and workshops in sectors such as machinery, electronics, gauging instruments, watches, plastics, light industries, and is also valuable for academic and research institutions.

Choose Carmar CNC Video Measuring Machine for Precision, Efficiency, and Versatility

Contact us today to learn more about how the Carmar CNC Video Measuring Machine can enhance your production quality and efficiency.

For more information, you can click here to check our additional resources: Blog.




Add Inquiry (0)
Added to Inquiry list.

Specifications

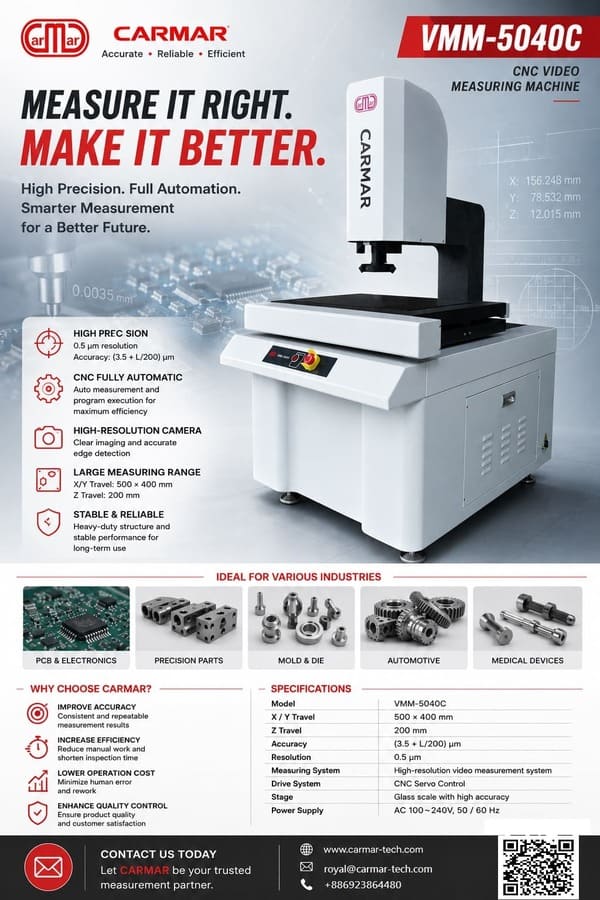

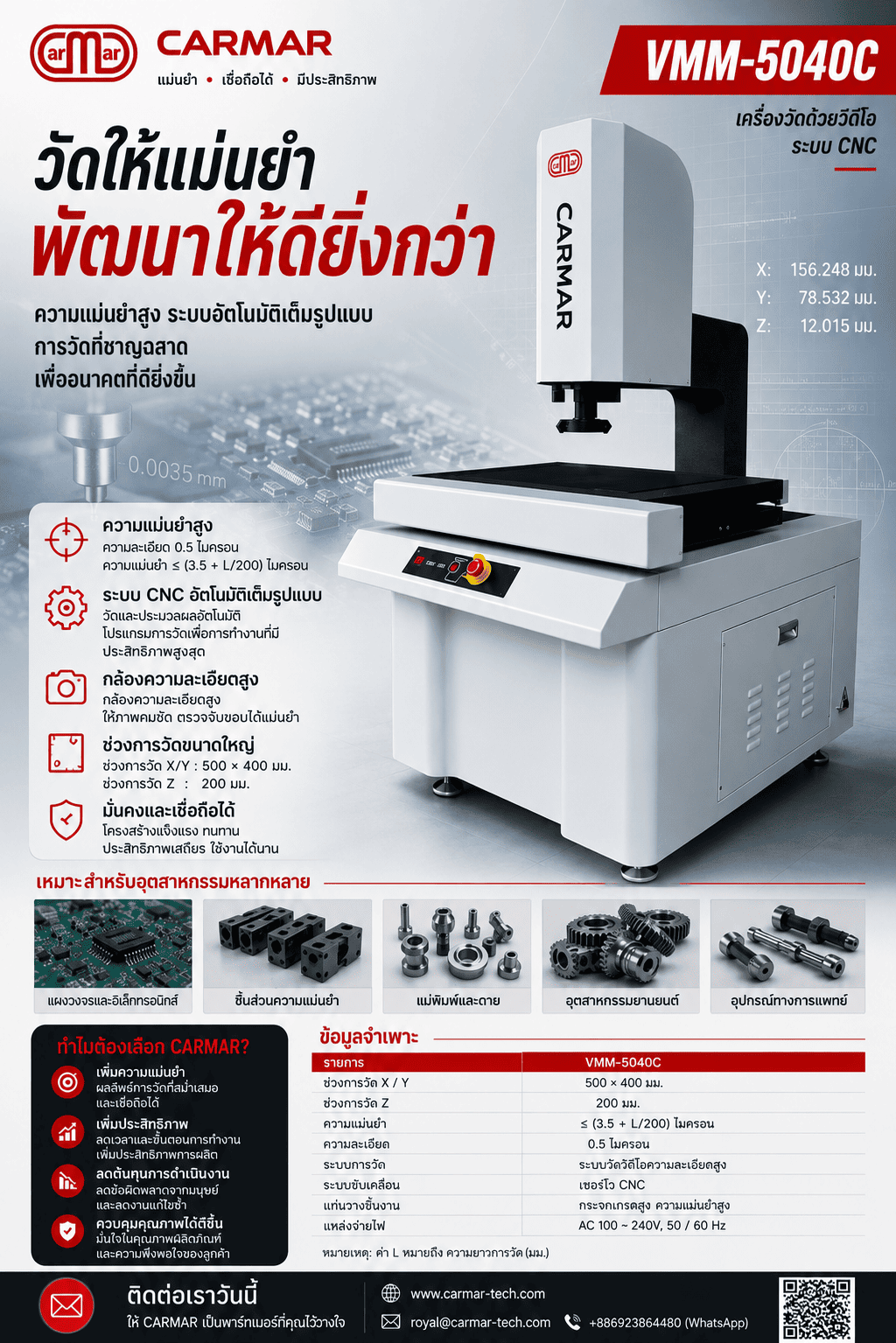

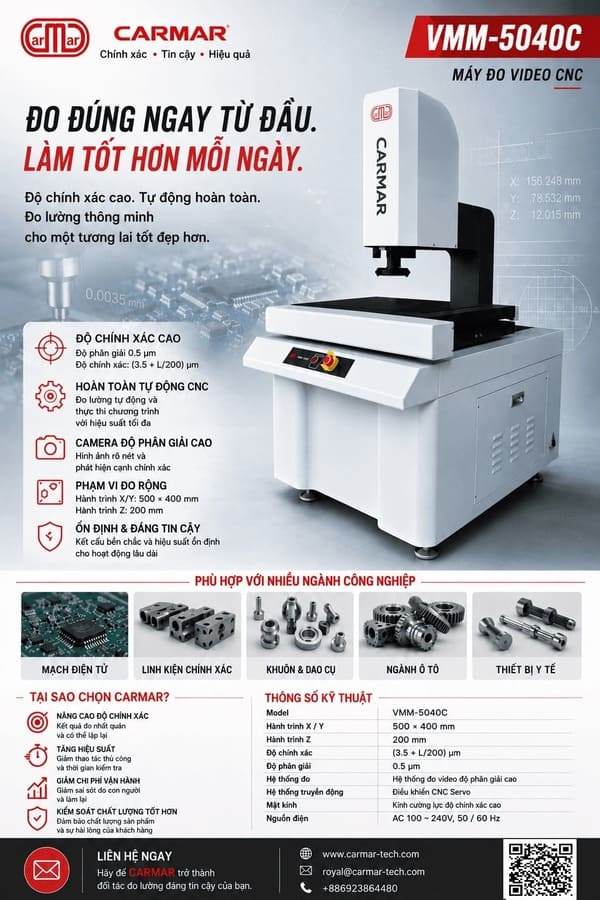

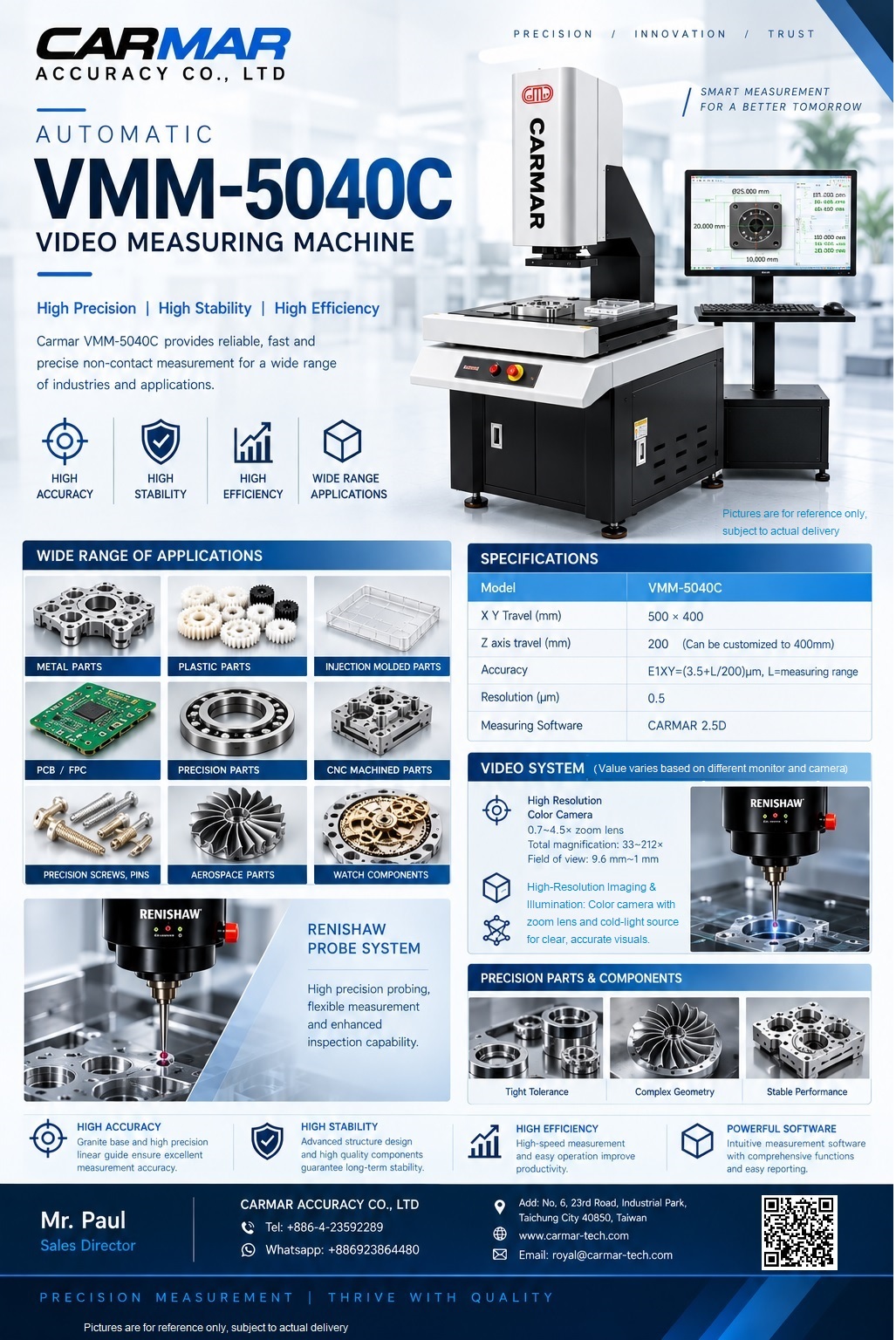

Model VMM-5040C
Metal table size (mm) 710 x 610
Glass table size (mm) 560 x 460
X/Y Travel (mm) 500 x 400
Weight (kg) 450
Dimensions (mm) 1190×950×1620 (estimated)
Resolution (μm) 0.5
Z axis travel (mm) 200 (Can be customized to 400mm)
Accuracy E1XY=(3.5+L/200)μm, L=measuring range
Measuring Software CARMAR 2.5D
Video system


Camera High Resolution Color Camera
Total Magnifications 0.7~4.5× zoom lens
Total magnification: 33~212×
Field of view: 9.6 mm~1 mm
This is a estimated value, it will change based on different size of monitor
Power Supply 400W
  Rights reserved to change specifications without prior notice
