One Click

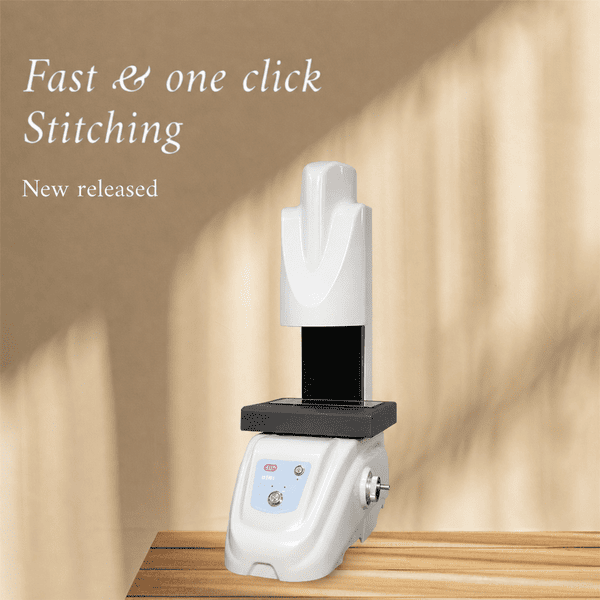

Stitching instant inspection system
- Features
- ► Height-adjustable ring light with bottom backlight
- ► Freely switch between two field-of-view sizes
- ► High-precision measurement
- ► Instantly detect hundreds of dimensions in one shot
- ► Built-in SPC statistical system
- ► Simultaneous multi-part measurement
- ► Image stitching function
Description
Automated Precision Measurement Solutions
Experience the next generation of automated measurement technology with our advanced imaging system, designed to streamline processes and enhance productivity.
Hands-Free Measurement for Streamlined Efficiency
Simply place the workpiece onto the machine—no precise alignment needed. Our system automatically measures with high accuracy, reducing setup time and manual adjustments, making it ideal for precision-focused manufacturers.
When to Use Our Measurement System
- Incoming Material Inspection: Detect abnormalities upon receipt to avoid defects.
- Experiment Batch Inspection: Ensure specifications are met before mass production.
- Sampling During Mass Production: Fine-tune parameters with random inspections.
- Pre-Shipment Inspection: Use robotic arms for comprehensive inspections to enhance quality.
Contact us today to learn more about how our automated measurement solutions can enhance your precision and productivity!
For more information, you can click here to check our additional resources: VIDEOS.
Specifications
| Model | VS200C | ||
|---|---|---|---|
| Lifting light source | Available | ||
| working distance(mm) | 120 | ||
| Working load (kg) | 3 | ||
| Working table lifting stroke(mm) | 40 | ||
| focus(z) | Auto focus | ||
| Drive control system | Independent Motor Control | ||
|
S Y
S T E M |
FOV type | Large FOV | Small FOV |
| Telecentric Lens | 0.088 X | 0.176 X | |
| Repeatability (μm) | 1 | 1 | |
| Without Stitching (mm) | 96*96 | 50*50 | |
| With Stitching (mm) | 200*96 | 150*50 | |
| Repeatability (mm) | 3 | ||
| Movement accuracy(mm) | 5 | ||
| X, Y indication error (mm) | 3+L/100 | ||
| Image Sensor | 20 million USB3.0 industrial camera | ||
| Software | CarVm200C Professional software for data processing | ||
| Lighting System | Adopt LED ring surface light, bottom light (automatic best light source) | ||
| Dimensions(mm)(L x W x H) | 568*300*769 mm | ||
| Weight (kg) | About 45 kg | ||
