Digital High Gauge

Description

Digital Height Gauge Series

The Digital Height Gauge Series is designed for high-precision dimensional inspection. Featuring a high-accuracy glass scale, it delivers excellent resolution, stability, and measurement performance for machining, mold making, electronics, and other precision manufacturing applications.

Key Features

  • High-Precision Glass Scale with low thermal expansion.
  • Resolution up to 0.1 μm for accurate dimensional inspection.
  • Metric / Imperial (mm / inch) conversion.
  • Bluetooth Wireless Data Output.
  • Standard M2.5 Interchangeable Probe.
  • Large LCD Display with easy operation.
  • External Trigger Measurement.
  • Suitable for various precision dimensional inspection applications.

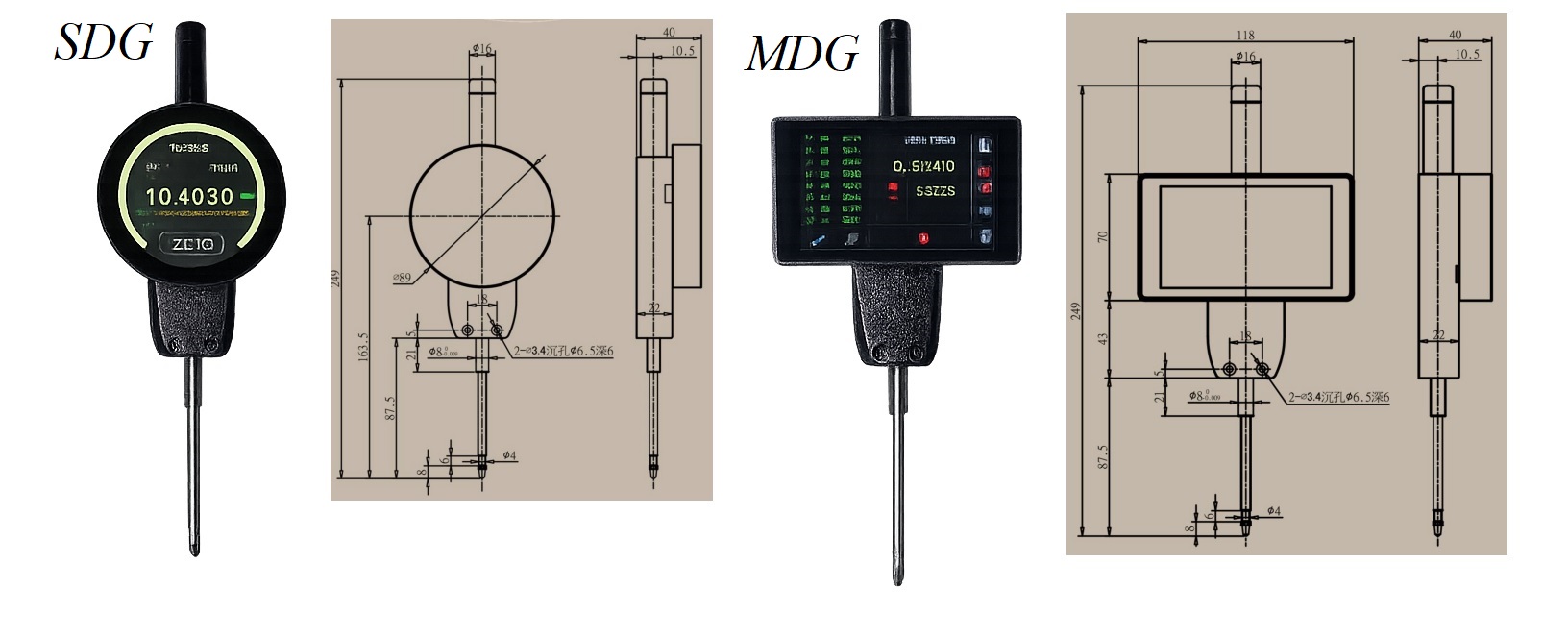

SDG – Standard Model

Designed for general-purpose dimensional measurement.

  • Zero Setting
  • Direction Reversal
  • External Trigger
  • Time Display
  • Bluetooth Data Output

MDG – Advanced Model

Includes all WTSE functions with additional advanced measurement and analysis capabilities.

  • Curve Measurement
  • Tolerance Inspection
  • Accuracy Compensation
  • Data Storage
  • Surface Profile Measurement
  • Bluetooth Data Output
Add Inquiry (0)
Added to Inquiry list.
Digital Height Gauge
Specification Standard Model (SDG) Advanced Model (MDG)
Measuring Range 0 ~ 50 mm
Resolution 0.1 μm / 0.2 μm / 0.5 μm / 1 μm
System Accuracy ±3 μm
Unit Selection mm / inch
Data Output Bluetooth
Zero Setting ● ●
Direction Reversal ● ●
External Trigger ● ●
Time Display ● －
Curve Measurement － ●
Tolerance Inspection － ●
Accuracy Compensation － ●
Data Storage － ●
Surface Profile Measurement － ●
Measuring Force <1.8 N
Measuring Speed <30 m/min
Power Supply 5–24 VDC (<150 mA)
Operating Temperature 10–40°C (Standard Temperature: 20°C)
Storage Temperature -10–50°C
Probe Thread M2.5
Measuring Base Granite / Ceramic (Optional)
